Features and Benefits

•
• Over 700 kbps data throughput for top performance
•
• 921.6 kbps maximum baudrate for super fast data transmission
•
• 128-byte FIFO and on-chip H/W, S/W flow control
•
• Choose from a wide range of connection cables and boxes
•
• Compatible with 3.3/5V PCI and PCI-X
•
• Drivers provided for a broad selection of operating systems, including the latest Windows and Linux
•
• 15 kV ESD protection on the board
•
• Wide temperature model available for -40 to 85°C environments

Introduction

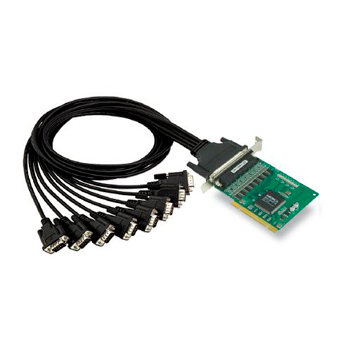

The CP-168U is a smart, 8-port universal PCI board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even Unix. In addition, each of the board’s 8 RS-232 serial ports supports a super fast 921.6 kbps baudrate. The CP-168U provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and works with both 3.3V and 5V PCI buses, allowing the board to be installed in virtually any available PC server.
